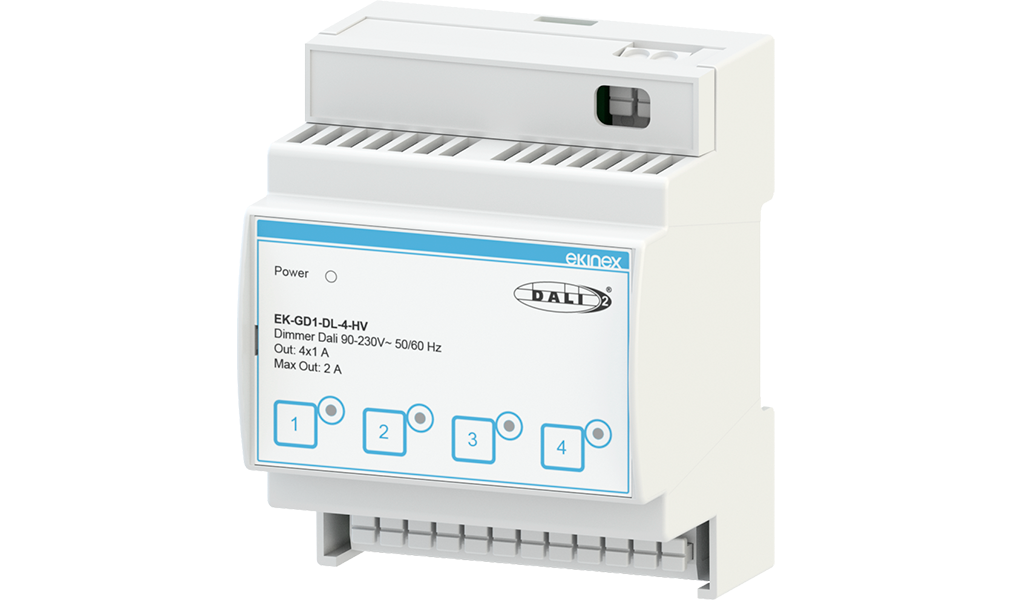

DALI Dimmer 90-230V~50/60Hz 4-channels

Name: DALI Dimmer 90-230V~50/60Hz 4-channels
Brand: ekinex
Availability: InStock

DIN-Rail mount modules

CODE: EK-GD1-DL-4-HV

Description

The 4-channel DALI-2 dimmer allows brightness control of LED and halogen sources with voltage 90-230V AC 50/60Hz for up to 200W on 4 channels each. Input Bus DALI-2 reference IEC 62386 standard.

TECHNICAL DATA

4-channel dimmer with phase cut output
Power supply range: 80-230V AC 50/60Hz
Maximum power output 200W per channel
For electronic loads and/or LEDs the power is halved
Conductor diameter 12-30 AWG (0.05-2.5 mmq)
Storage temperature Min: -40°C Max: 60°C

NOTES
For electronic loads and/or LEDs consider maximum power halved from nominal value.

Functions / Features

Plastic housing
Device with 4 modular units
Mounting on 35 mm profile rail (according to EN 60715)
IP20 degree of protection (device installed)

FUNCTIONALITY

Memory function, fade time, minimum and maximum level settable via DALI software
Dimming up to complete switch-off (dim-to-dark)
Minimum brightness level: 0.1%
Dimming curve: linear / logarithmic settable by DALI
Electronic short-circuit and overload protection
