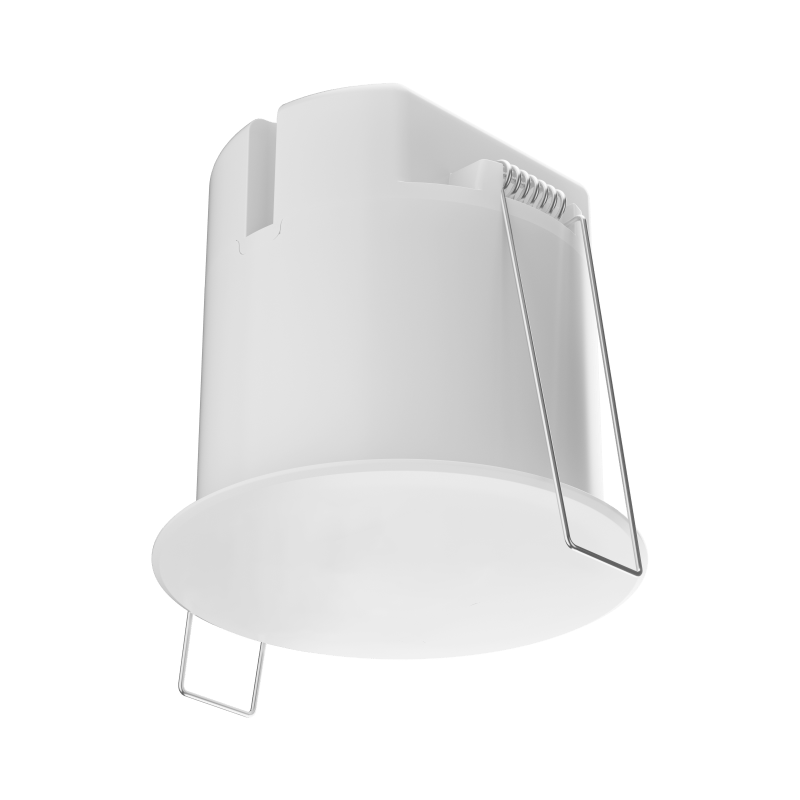

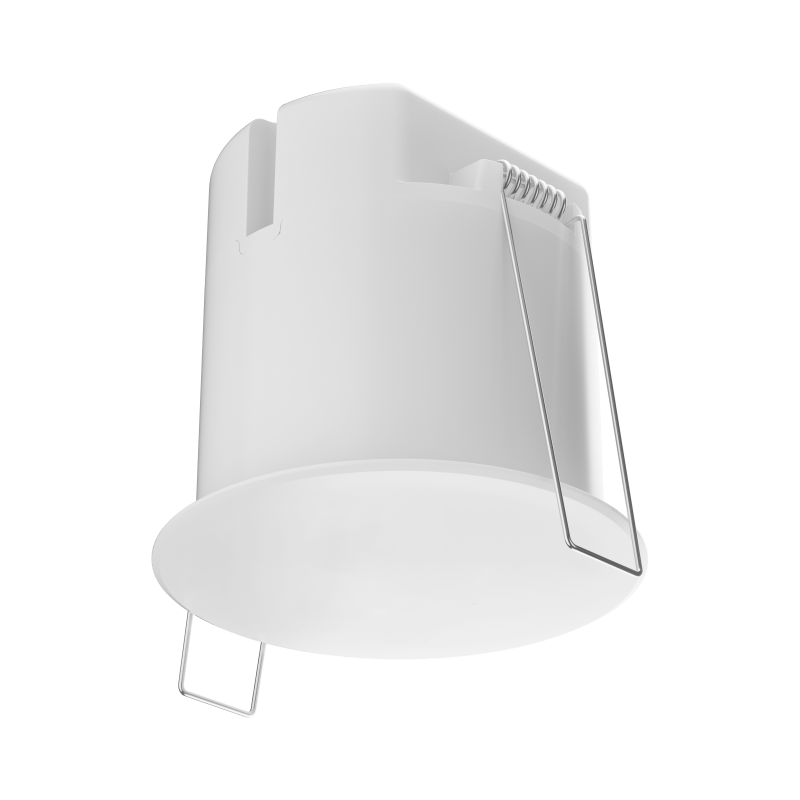

Model Short Name: R5-60G-485
Product Model: CTL-SEN-R5/6208
60G mmWave Radar Monitoring Sensor
Falls/presence/left bed/right bed/area exit in one
Using cutting-edge 60GHz FMCW (Frequency-Modulated Continuous Wave) millimeter-wave radar detection technology, multidimensional detection is performed through the CTL artificial intelligence algorithm, enabling the monitoring of a person's movement status, posture, direction, and location information.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: 5*6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ55mm
Power Input: DC12~30V
Interface: RS485
