ekinex Revélo Under Bed Lift TV（EK-BTV-BL）專為高端睡房而設，將電視巧妙收藏於床底，保持牆面同窗景完整，令空間更俐落有序。系統以三組電機驅動三段動作：先水平滑出床底、再旋轉至直立，最後升起至安裝時設定嘅觀看高度，整個循環約 25–28 秒，動作亦以靜音取向處理。
產品亮點：
- 支援 32–55 吋電視、最高承重 25 kg，配合 48 吋 4K/8K 觀看距離需求，適合現代睡房比例。
- 黑色 RAL 9005（Gloss 30）外觀低調，並設可拆式走線蓋板，方便把訊號線同電源線整理得乾淨。
- 內置紅外線雷射光電感測及符合 EN 60335-1、UL 962 標準，並提供附顯示的功能控制面板（供授權人員使用）及床側／牆身安裝支架。
應用場景：特別適合海景／山景睡房或精品酒店套房，把電視「需要先出現」，再配合 linko 的系統整合與安裝服務，將控制按鍵、情景模式與其他智能家居設備一併規劃。
English

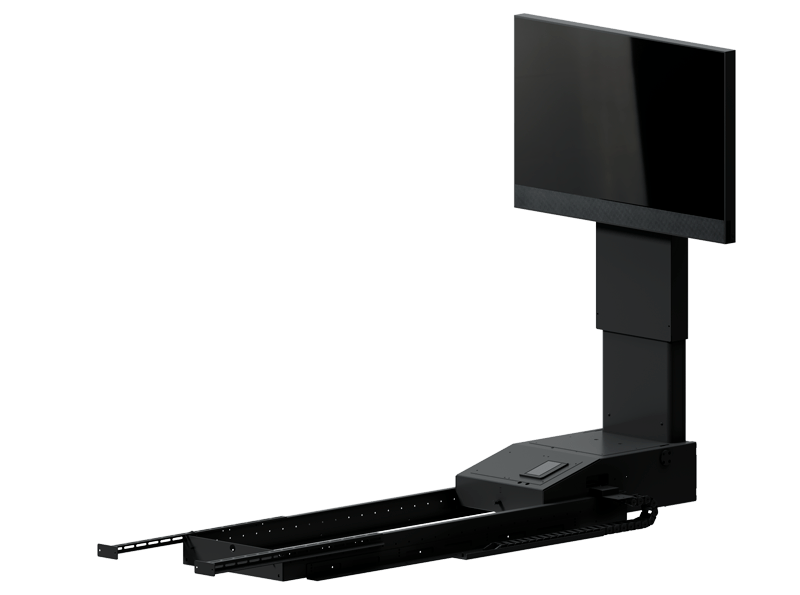

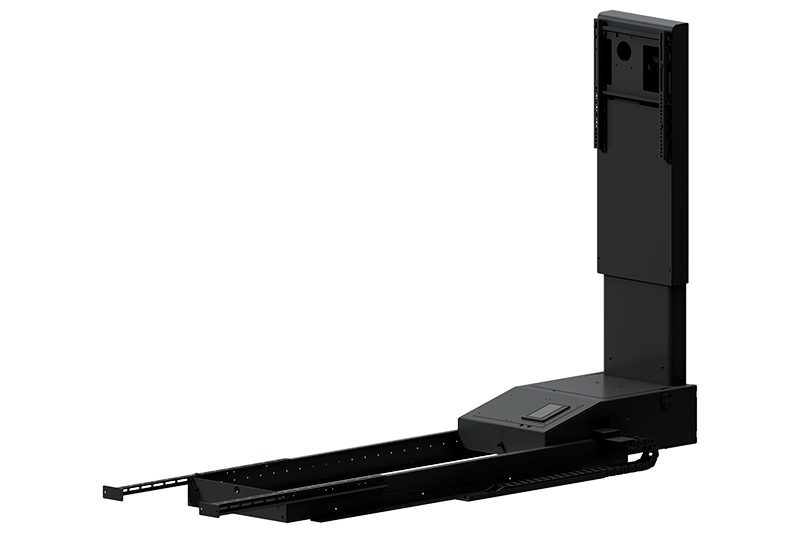

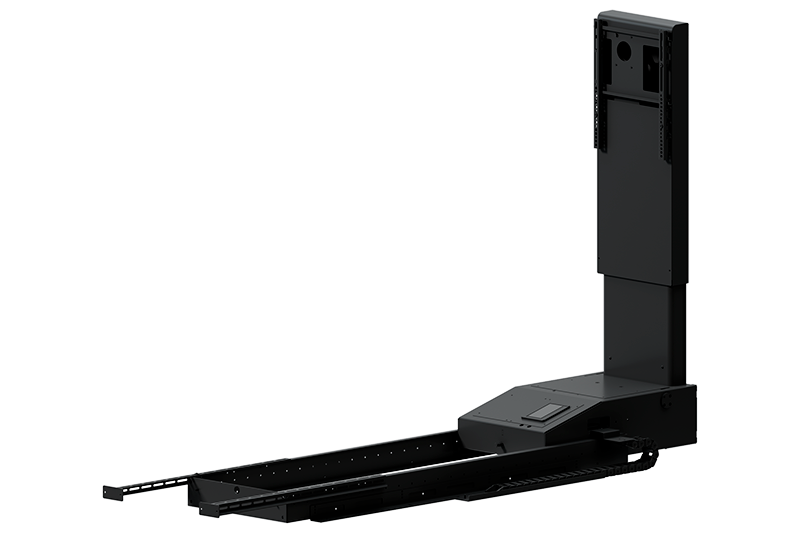

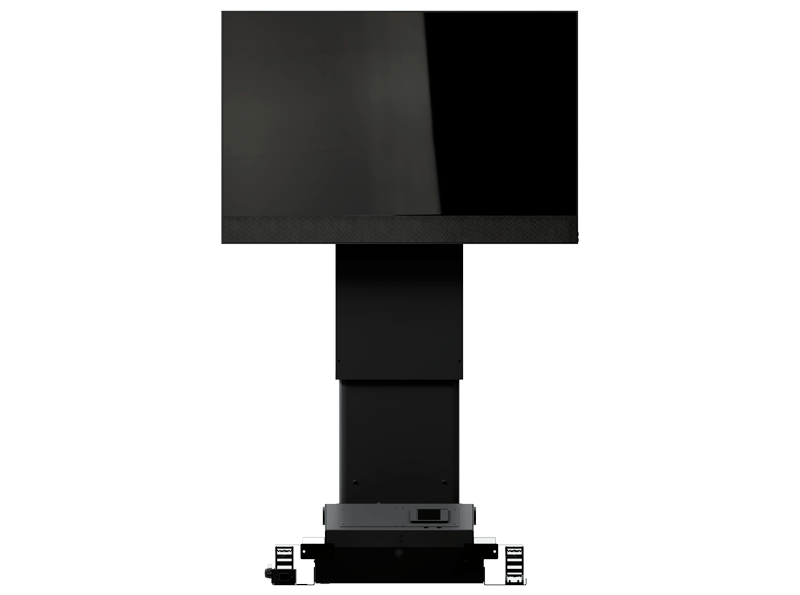

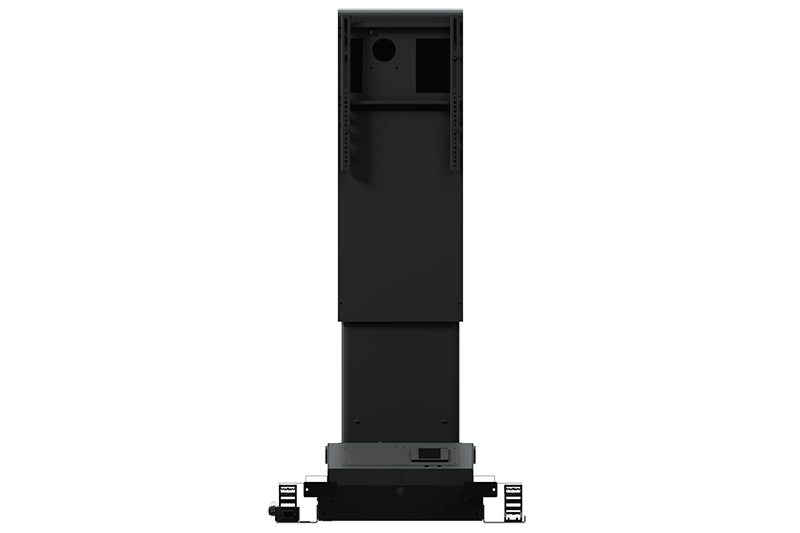

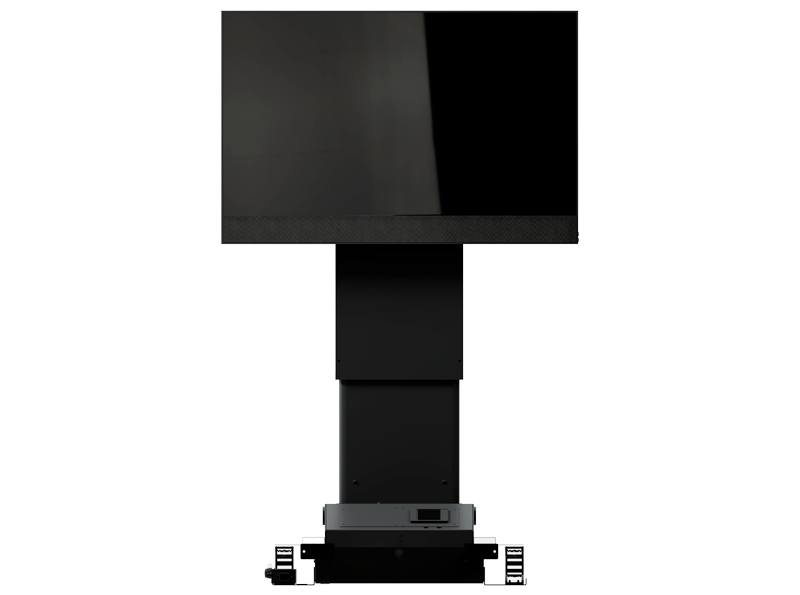

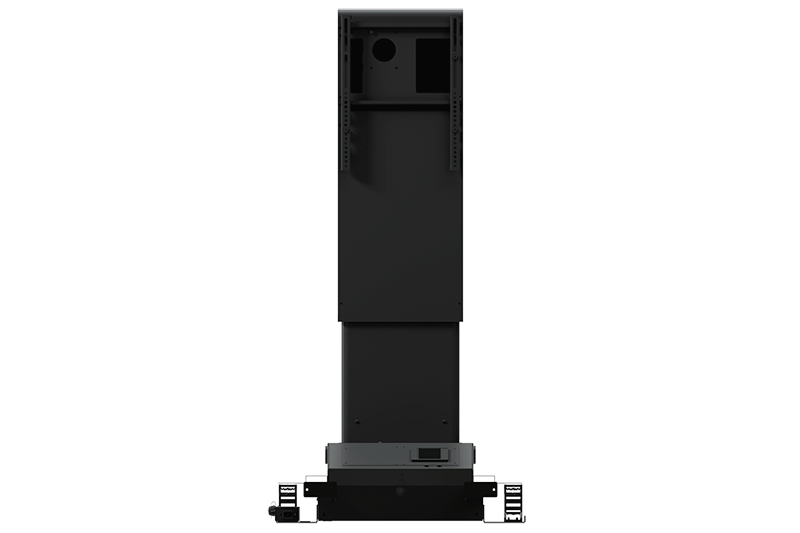

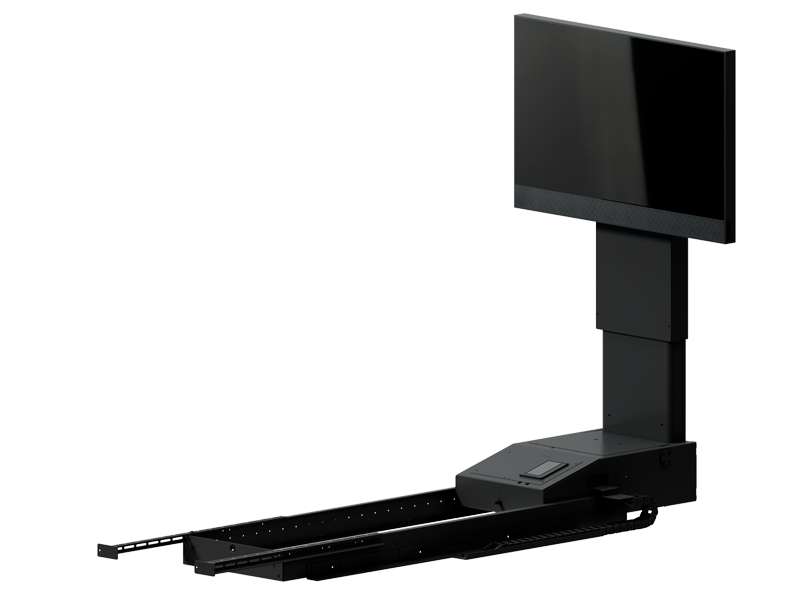

The ekinex Revélo Under Bed Lift TV (model EK-BTV-BL) is a motorized mechanism designed to hide a TV beneath the bed and bring it out only when you want it—ideal for bedrooms where clean walls, built-in furniture constraints, or a beautiful view shouldn’t be compromised.
Built around a three-motor movement sequence, the system performs three coordinated actions: horizontal translation (slides the TV out from under the bed), rotation (brings the screen to a vertical position), and lifting (raises it to a preset viewing height). A full deploy/retract cycle takes about 25–28 seconds, with a quiet-motion design intended for comfort in sleeping areas.
Key features:
- Fits 32–55 inch screens, supporting up to 25 kg, with a recommended 48 inch size for modern 4K/8K viewing distances.
- Integrated wired control plus a function control panel with display (for authorized operators), and mounting brackets for bedside or wall installation.
- Practical and safety-minded details including removable cable-routing cover panels, infrared laser photoelectric sensors, and compliance with EN 60335-1 and UL 962.
Use case: Pair Revélo with a custom bedframe or millwork design to create a “TV on demand” experience in luxury residences or hospitality suites. linko provides consultation, on-site installation, and integration planning to match the lift with your AV and smart home control design.
