4-fold binary output

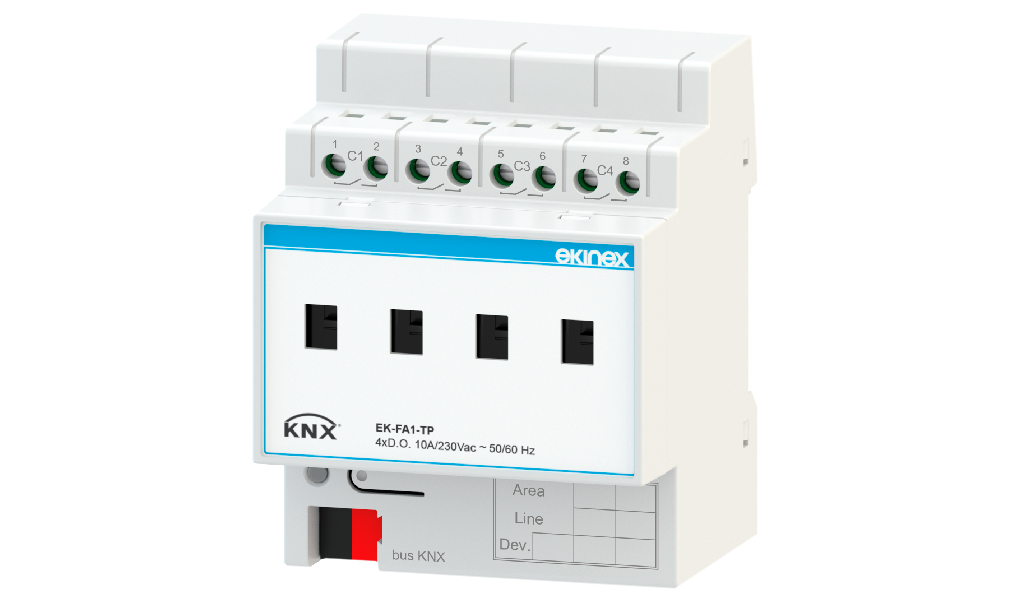

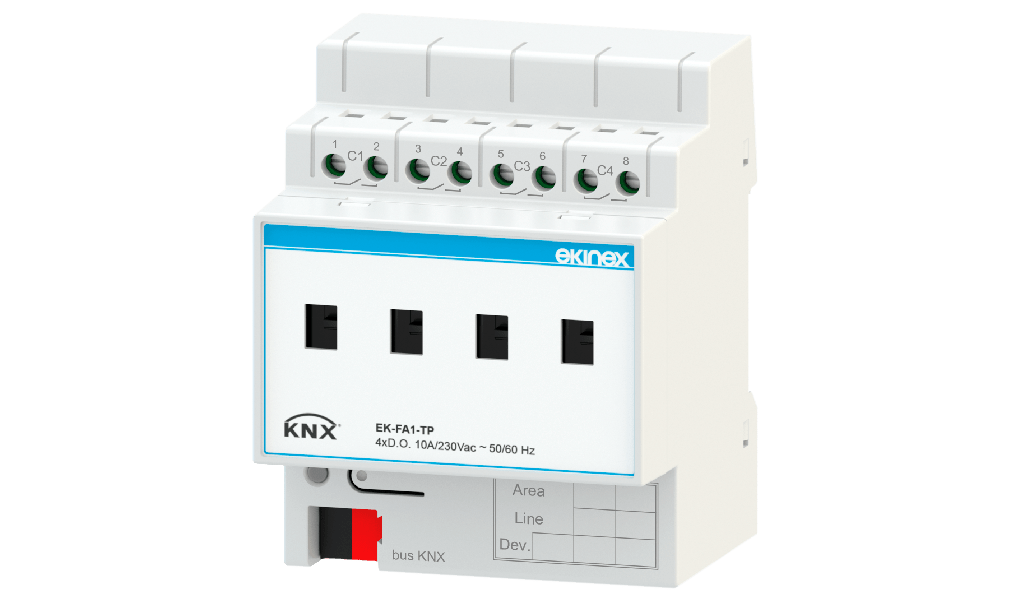

The Ekinex® EK-FA1-TP binary output allows to command 4 groups of loads independently; to this purpose, the device has outputs fitted with potential-free relays, . The device’s latching relays guarantee the upkeep of command status even in the case of bus power failures. The front levers indicate the status of each output channel and, in case of emergency, allow manual command (by means of a tool) of the loads. The device integrates a KNX bus communication module and is realized for mounting on a standard 35 mm DIN-rail. The device is supplied by the KNX bus and does not require auxiliary power supply.

Technical data

Power supply

• 30 Vdc voltage by KNX bus
• Current consumption from bus < 12 mA
• Power from bus 360 mW

Outputs

• 4 latch relays
• Nominal voltage (Un): 100-230Vac, 50/60Hz
• Nominal current (In): max 10 A (both @100Vac and @230Vac)
• Switched power: 1000W @100Vac - 2200 W @230Vac
