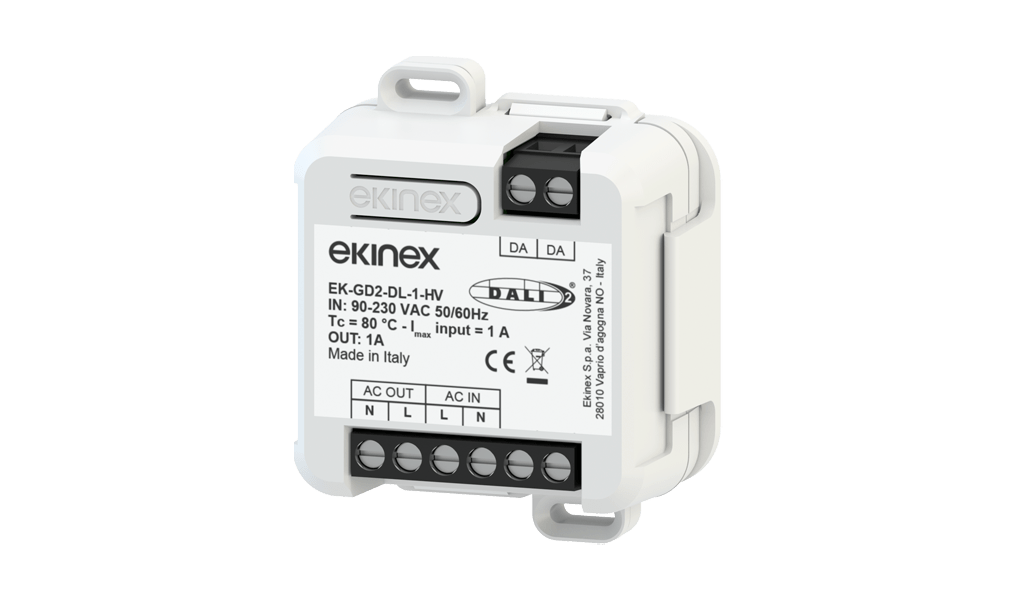

The single-channel phase cut dimmer EK-GD2-DL-1-HV allows the brightness control of LED and halogen sources with a voltage of 90-230V~50/60Hz for up to 220W. Input Bus DALI-2 reference IEC 62386 standard.

Technical data

• Single-channel dimmer with phase-cut output
• Supply range: 90-230V~50/60Hz
• Maximum output power 230W
• Control inputs: DALI bus
• Maximum resistive load 1A for electronic and/or LED loads the power is halved
• Conductor diameter 12-30 AWG (0.05-2.5 mmq)
• Storage temperature Min: -40°C Max: 60°C

NOTES
For electronic loads and/or LEDs consider maximum power halved from nominal value.
