Description
Overview

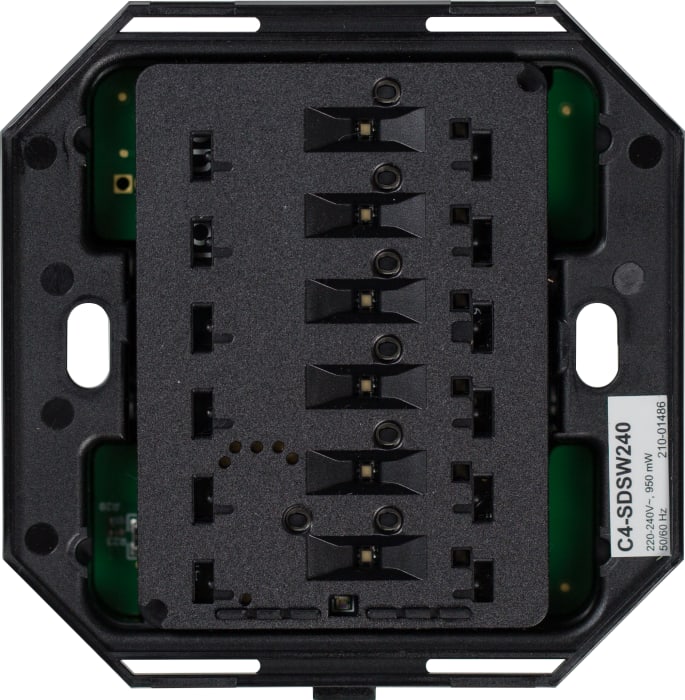

The Control4® Square Dual Load Wireless Switch combines two relays and a configurable keypad for on/off control of up to two loads. The keypad can be configured with two to seven buttons using five different buttons sizes for a total of 38 possible configurations.
Features
- Provides independent control of up to two different loads.
- Wireless communication and standard wiring provide easy installation in new construction and retrofit environments.
- Compatible with a variety of load types including incandescent, halogen, electronic low-voltage (solid state) transformers, magnetic (iron core) low-voltage transformers, fluorescents, compact fluorescents, LEDs, and motors.
- Continuously measures energy being used by the attached load.
- Elegant, sophisticated design makes a beautiful addition to any home or business.
- Custom engraving available to clearly identify each button.
- Backlit button engraving with programmable color control for easy readability regardless of time of day or light level.
- Programmable RGB LEDs provide status feedback for lighting and other devices in the system.
- Configure with two to seven buttons using five different button sizes for a total of 38 possible configurations.
- Easy reconfiguration means there’s no need to worry about how many buttons will be needed on a specific switch before (or even after) installation.
- Ships as “neutral” device with no buttons included. Keypad-style button kit and Rocker-style button kits sold separately in a variety of colors (see “Available accessories”).
- Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room.
- Control4® screw-less faceplates sold separately, provide a sleek profile (see “Available accessories”).
- Installs in standard square (UK/China-style) single-gang wall box.
- Not compatible with round (EU-style) or UK-style double-gang wall boxes.
