Description
Unlimited learning possibilities. With Pro.
As digitalization of education accelerates to enable impactful, interactive collaboration, Flip Pro gives educators the tools needed to deliver a new, advanced level of learning. With versatile connectivity, intelligent software and intuitive features, Flip Pro introduces the future of education.
Better interaction with best-in-class multi-touch
Fast & multi-touch
Flip Pro delivers industry-best latency at just 26ms, with prediction logic applied to ensure a realistic, smooth drawing experience with 2,048 point of thickness built directly into the display to unlock creativity. Plus, Flip Pro enables multi-touch for up to 20 people for enhanced interactivity.
* When using single touch.
Bring ideas to life in an instant
Intuitive writing & drawing
Ideas are brought to life instantly on Flip Pro with pen and brush mode that provides a real-world writing experience, while flexible erasing requires just a swipe of your finger or palm. The quick tool and palette menu ensure creativity flows and toggle button easily enables a new note layer UI.
Stay connected from any source
Versatile connectivity

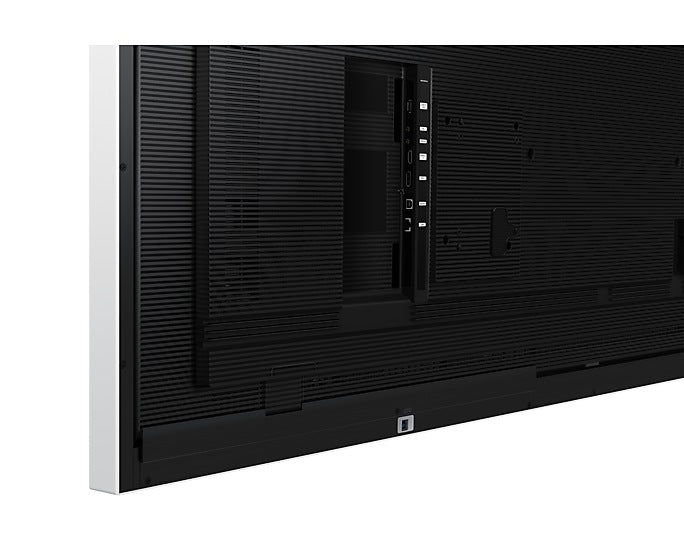

Flip Pro provides multiple connectivity options, including USB, HDMI and DP. Educators can easily connect any device to access content and display information on a larger screen, as well as connect to any network and other devices through LAN port and wireless screen-mirroring.
* Image simulated for illustrative purposes.
One single port for three functions
3-in-1 USB-C port
Connectivity is enhanced with 3-in-1 USB-C connectivity, enabling screen mirroring, touch control and external device charging(max. 15W). Educators can simply connect to the USB Type-C port, allowing them to deliver interactive and engaging lessons without any hassle.
* When compared to previous Flip models.
Share with AirPlay 2
AirPlay 2
Flip Pro is integrated with AirPlay 2, allowing educators and students to present on the big screen, increasing visibility and engagement in larger spaces. Creating a wireless dual display setup ensures no student misses out on important information for more collaborative interactions.
* Images & on-screen contents are simulated and for illustration purpose only.
Smart, wireless sharing from multiple from devices
SmartView+
With SmartView+, up to 50 devices can be simultaneously connected to the interactive display wirelessly, in addition to enabling multi-view on up to four screens. This cable-less screen sharing functionality is ideal for larger meeting rooms as well as digitized classrooms.
* Image simulated for illustrative purposes.
Access whatever you need, from anywhere
Workspace
With Workspace secured by Knox, Flip Pro enables users to easily access remote PC, network drive and other third-party applications such as Office 365, VMWare, Boxlight MimioConnect*. This ensures efficiency from any location and an uninterrupted workflow for educators and students.
* Available apps may vary by region and require service subscription.
Optimize lesson planning with embedded learning solution
Boxlight MimioConnect*
Flip Pro offers the MimioConnect app, an online blended learning platform, providing an extensive catalog of versatile learning content available via Workspace. Samsung’s partnership with leading US education solutions delivers innovative education software directly.
* Requires Boxlight registration and subscription to use this service and the service availability varies by region.* Images & on-screen contents are simulated and for illustration purpose only.
Keep informed with remote management solution
Remote content push
Using Samsung’s MagicINFO Remote Management solution, Flip Pro offers new functionality that pushes content, alerts and warnings from the school information system to the display, notifying teachers and students of important updates which can be pushed directly to Flip displays in every classroom.
* Requires MagicINFO license to use this service and SIS(School Information Service) should be separately built and integrated with MagicINFO.
Clean screen and minimized damage risk
Protective screen technology
Samsung Flip Pro delivers peace of mind with a built-in Antimicrobial Coating which inhibits microbial growth. Plus, the Flip’s display is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
* To perform its antibacterial function, this product has been treated with the biocidal substance Silver phosphate glass.** Antibacterial property does not protect users against bacteria and provides no protection against viruses including Covid-19.*** Antimicrobial Coating is on surface of screen only and the effect may vary depending on conditions of use.**** Antibacterial certification: UL2282 which is granted when the antibacterial effectiveness is more than 99%.(Test method(JIS Z 2801): after inoculation of 0.4cc of liquid with bacteria(Escherichia coli and Staphylococcus aureus) on specimen(5cm x 5cm), a sterilized film(4cm x 4cm) is adhered and left in a thermo-hygrostat with a relative humidity of 90% or more at 35°C for 24 hours, and then the efficiency of killing of the bacteria is measured / Test agency: KOTITI Testing & Research Institute)
Specifications
Specifications Detail
Display
- Diagonal Size55"
- Panel TypeVA
- Resolution3,840 x 2,160
- Pixel Pitch (HxV)0.315 x 0.315
- Brightness (Typ)350 (w/o glass), 220 (w/glass)
- Contrast Ratio4000:1(without glass)
- Viewing Angle (H/V)178/178
- Response Time8ms
- Color Gamut72%
- Glass Haze2%(without glass)
- H-Scanning Frequency30~81 khz
- Maximum Pixel Frequency594Mhz
- V-Scanning Frequency48~75 Khz
- Operation Time Support16/7
Connectivity
- HDMI In2
- DP In1
- Version of HDMI2
- Version of DP1.2
- Version of HDCP2.2
- USB1(Rear), 3 (with optional front tray, Internal 1, External 1, USB-C 1)
- Audio OutStereo Mini Jack
- RS232 InYes
- RJ45 InYes
- WiFiYes
- BluetoothYes
Power
- Power SupplyAC100-240V 50/60Hz
- Power Consumption (On Mode)154W
- Power Consumption (Sleep Mode)0.5W
Dimension
- Set Dimension (WxHxD) (mm)1297.4 x 768.2 x 59.9 mm
- Package Dimension (WxHxD) (mm)1464 x 915 x 190 mm
Weight
- Set Weight (kg)28.6 kg
- Package Weight (kg)35.9 kg
Operation Conditions
- Temperature (℃)0℃~40℃
- Humidity (%)10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount (mm)400 x 400 mm
- Bezel Width26.2
- Frame MaterialPlastic
Optional Feature
- TouchYes
- MountYes(Model Name : WMN-4277SF)
- StandYes(Model Name : STN-WM55R)
SoC
- OS VersionTizen 6.5
- Flash Memory Size32GB
Touch
- Touch TechnologyIR
Certification and Compliance
- EMCClass A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005
- SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
